Valve Design & Engineering Services

Valve Design & Engineering Services

Framework Engineering delivers integrated valve design and development services tailored to the needs of global manufacturers and traders. Our expertise spans across 30+ valve types with over 1200+ successful designs currently in our library.

We collaborate with our customers to provide innovative, functional, and cost-effective solutions while strictly complying with international standards such as API, ASME, ISO, and DIN. Our goal is to support your business with optimized designs that make manufacturing and marketing your products effortless.

1200+ Designs
30+ Valve Types

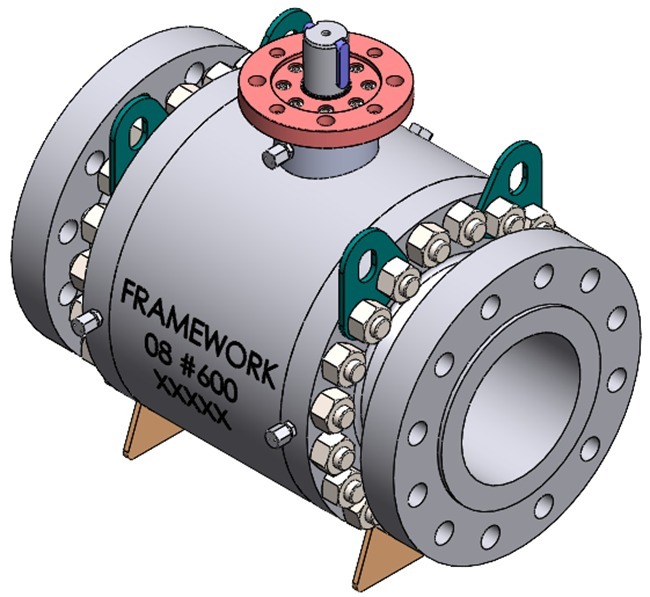

Valve Engineering Services

List of Available Designs

1200+ designs available at this moment for various industries

Trunnion Mounted Ball Valve (API 6D)
Size: up to NPS 56 Class: up to 2500
Floating Ball Valve (API 608/API 6D)
Size: up to NPS 08 Class: up to 2500
Top Entry Ball Valve (API 6D)
Size: up to NPS 48 Class: up to 2500
Through Conduit Gate Valve (API 6D)
Size: up to NPS 36 Class: up to 2500
Gate Valve (API 600)
Size: up to NPS 48 Class: up to 2500
Globe Valve (API 623)
Size: up to NPS 12 Class: up to 2500
Swing Check Valve (API 594 & API 6D)
Size: up to NPS 24 Class: up to 600
GGC (API 602)
Size: up to NPS 2 Class: up to 2500
Piston Valve (ASME B16.34)
Size: up to NPS 8 Class: up to 300
Dual Plate Check Valve (API 594)
Size: up to NPS 42 Class: up to 2500
Concentric Butterfly Valve (API 609)
Size: up to NPS 36 Class: up to 300
Double Offset Butterfly Valve (API 609)
Size: up to NPS 36 Class: up to 300
Triple Offset Butterfly Valve (API 609)
Size: up to NPS 36 Class: up to 1500

Standard Deliverables

Each design is delivered with a complete set of engineering documents:

  • 3D Models of Parts & Assembly
  • Manufacturing Drawings
  • General Arrangement Drawing
  • Bill of Material

Additional Documents

On customer request, we provide extensive technical support:

  • Assembly/Disassembly Procedure
  • Technical Data for Catalogue
  • Engineering Calculations
  • Testing & FAT Procedure
  • Material Data Sheets
  • IOM Manuals

Our Engineering Capabilities

Custom Valve Design
Custom Valve Design

Tailored valve designs engineered specifically for your application requirements and operating conditions.

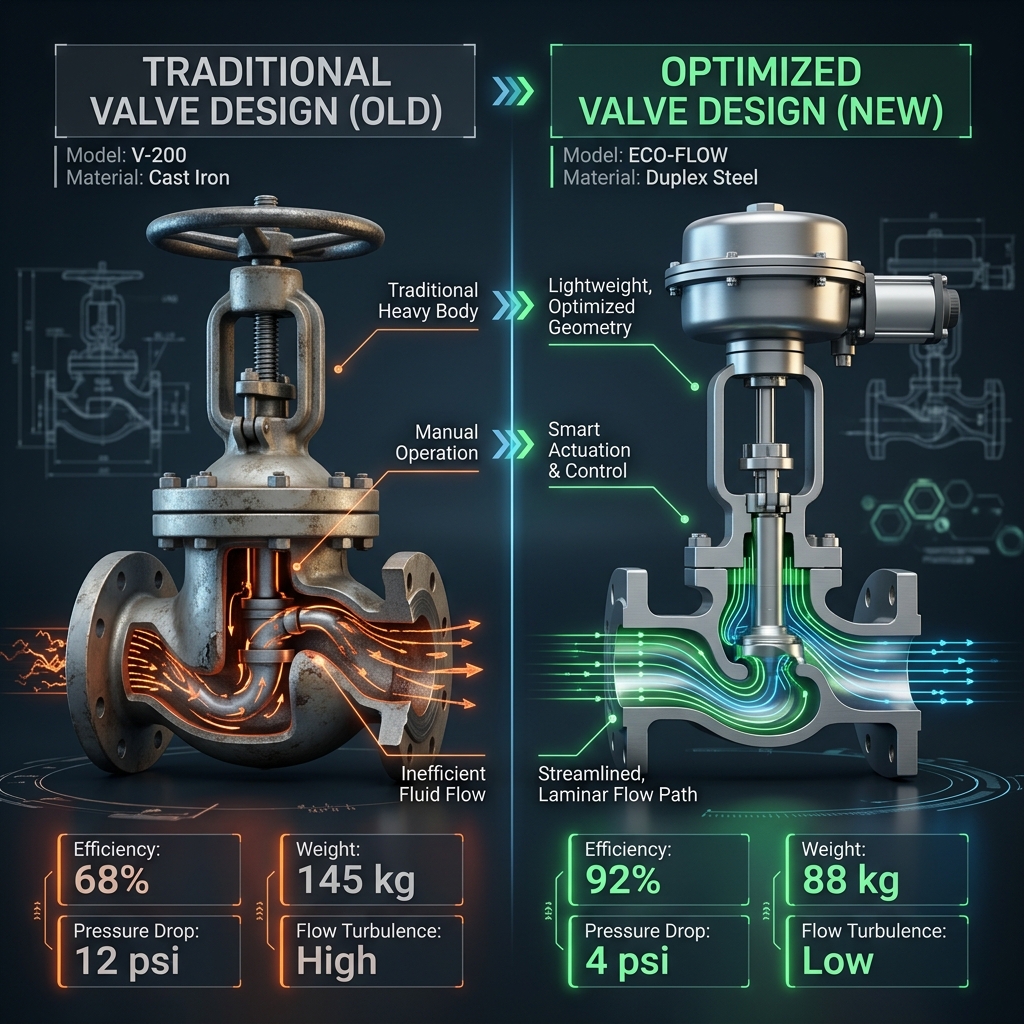

Design Optimization
Design Optimization

Enhance existing designs for better performance, reduced costs, and improved manufacturability.

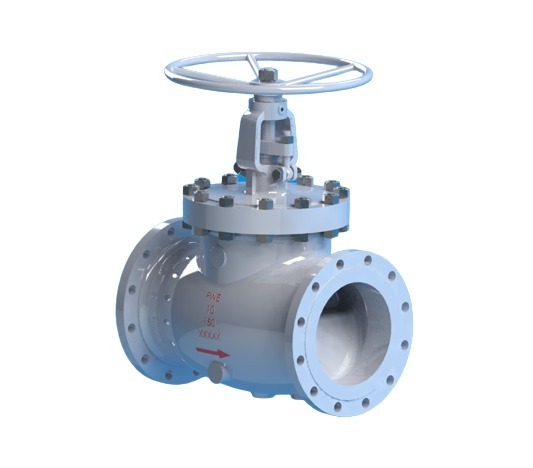

3D Modeling & CAD
3D Modeling & CAD

Detailed 3D models and CAD drawings for accurate visualization and manufacturing.

Technical Documentation
Technical Documentation

Complete technical specifications, drawings, and documentation packages.

Manufacturing Support
Manufacturing Support

Ongoing technical support during production to ensure quality and efficiency.

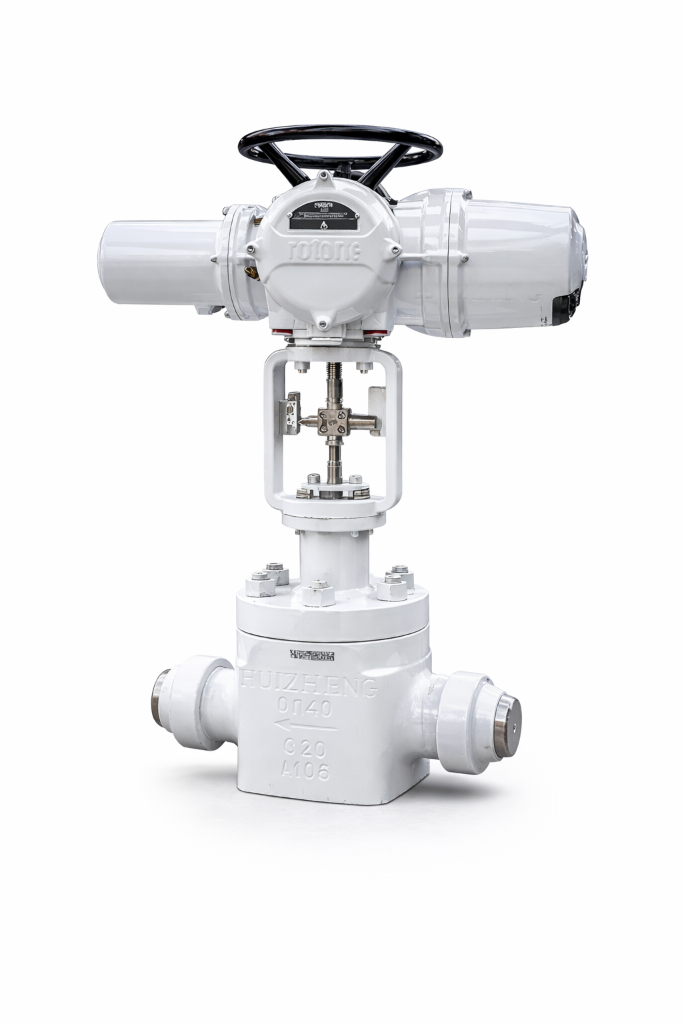

FEA & CFD Analysis
FEA & CFD Analysis

Advanced Finite Element Analysis and Fluid Dynamics simulations to validate design performance.

Why Choose Our Engineering Services?

Faster Time to Market

Reduce development cycle by up to 50% with our ready-to-use designs

Cost Reduction

Optimized designs that minimize manufacturing costs without compromising quality

Proven Quality

Designs tested and validated across multiple applications and industries

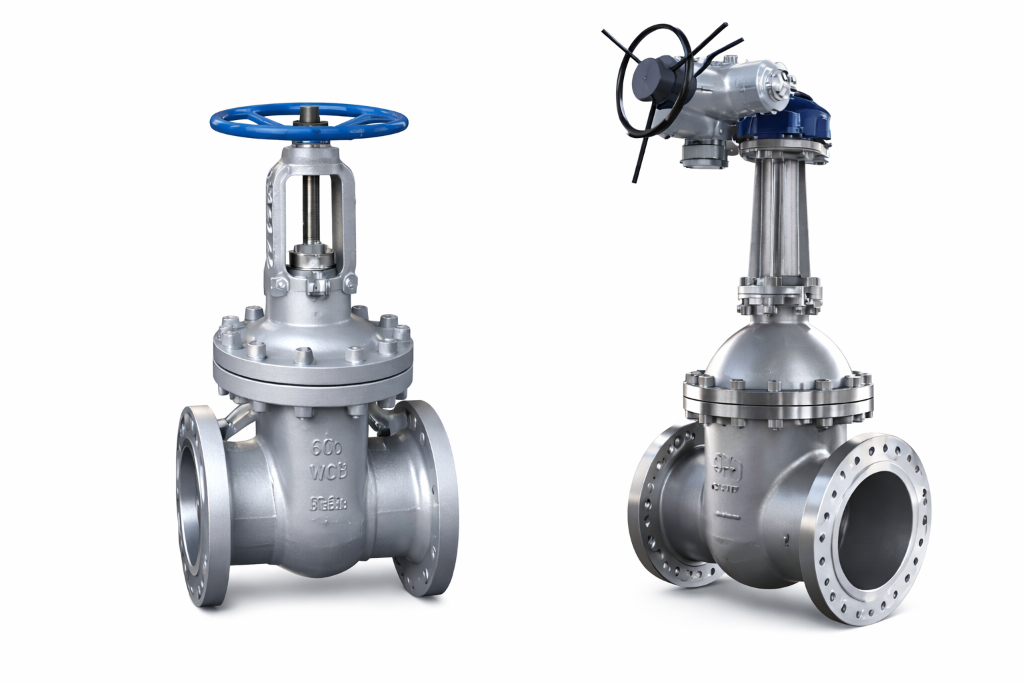

Valve Engineering Benefits

Ready to Start Your Engineering Project?

Let's discuss how our engineering services can help you achieve your goals
